| 性能特点 |
该生产线是将较薄金属卷板整平、剪切成块状板材的专用设备，实现工件连续运行不停的工况下，完成高速精确定长剪切，工件平整度及板型好，特别适合于剪切短板工件的批量生产。

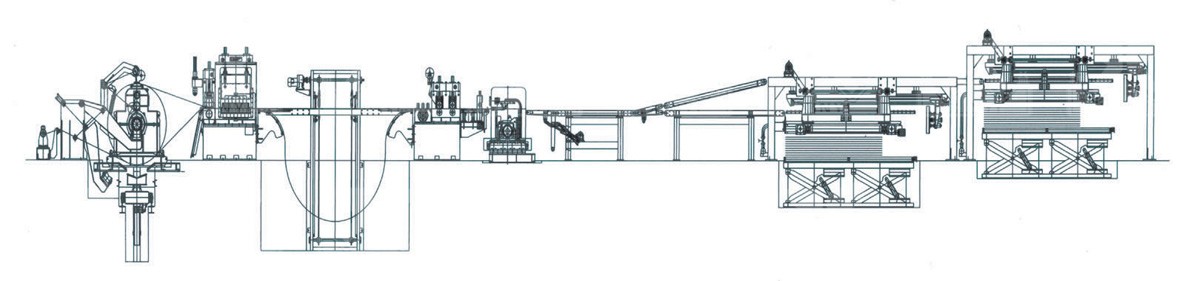

通常由上料小车、开卷机、引头装置、校平主机、活动过桥、导向纠偏装置、定尺机构、覆膜装置、飞剪 主机、输送工作台、气动排料架、液压升降垛料台、运料滚道台及液压、气动及电气控制系统等组成。
主要液压、气动、电控元件、定尺飞剪控制系统均选用国际一线品牌，操作界面友好，可靠性高。 | |
| Features: |
This line is professional equipment for leveling and cutting plate to pieces for thin metal plate, suitable for mass producing of short width coils.
It usually consists of feeding car, uncoiler, pressing & traction device, level machine, movable bridge, guide correction device, cut-to-length mechanism, film coating device, shearing machine, transition table, pneumatic discharging frame, hydraulic lifting stack table, transport roll table, and hydraulic, pneumatic, electrical、control system etc. Control with PLC. Main hydraulic, pneumatic, electronic elements, cut-to-length control system all use international famous brand.
This equipment is mainly for processing cold carbon coil, stainless steel coil, and color metal coil, can complete with 6-high level machine to meet the precision leveling. | |
|
 |
|
 |
|
| 主要技术参数 Specifications |
| 项目 Name |
单位 Unit |
可选择范围 Optional range |
| 加工板厚 Plate thickness |
mm |
0.3-2.0 0.5-3.0 |
| 标准板宽 Standard width |
mm |
650 800 1000 1250 1600 |
| 开卷机承重 Uncoiled weight |
T |
5-20 |
| 校平精度 Leveling precision |
mm/m2 |
1.0 |
| 定尺精度 Cut-to-length precision |
mm/2m |
±0.2-0.5 |
| 机组最高线速度 Highest line speed |
m/min |
60-120 |
| 机组总功率 Total power |
Kw |
120-200 | | |
|
| 本表所列参数，不作为产品检验依据，仅供产品选型参考。如出现与产品实际数据有不一致处，应遵照说明书或双方的技术协议约定。 |
| The data in file not as inspection evidence, just reference for model chosen. If any difference with actual data, please refer to manual or technical agreement by both parties. | |
