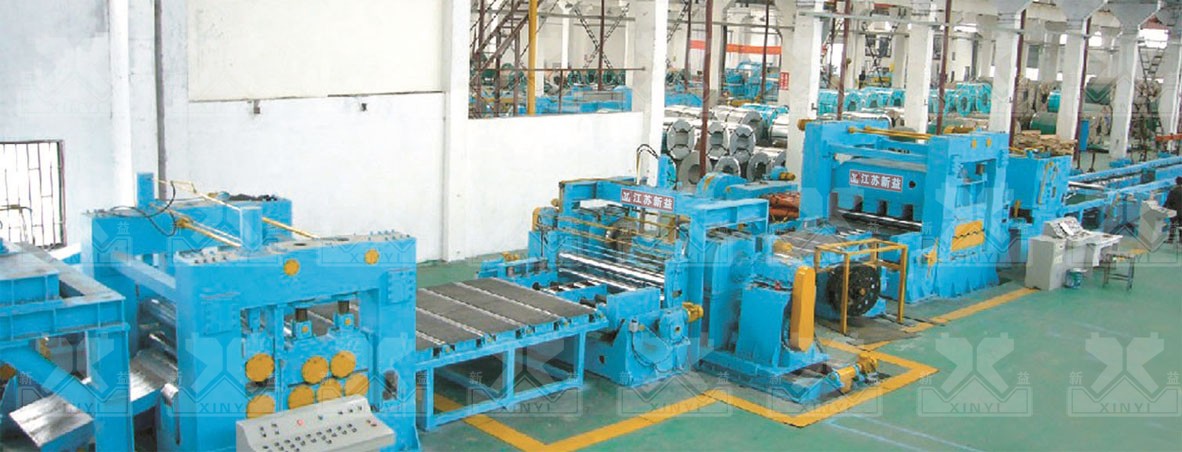

T44QK系列开卷校平纵横剪复合线
T44QK Series Uncoil Slit-Cutting Combined line
性能特点
在中厚板横剪线的基础上,增加纵剪功能,工件经纵剪后再定长横剪;如果不需纵剪,抬起纵剪上刀轴,可 作为普通横剪线使用。特别适合于汽车、钢构、制罐等行业。

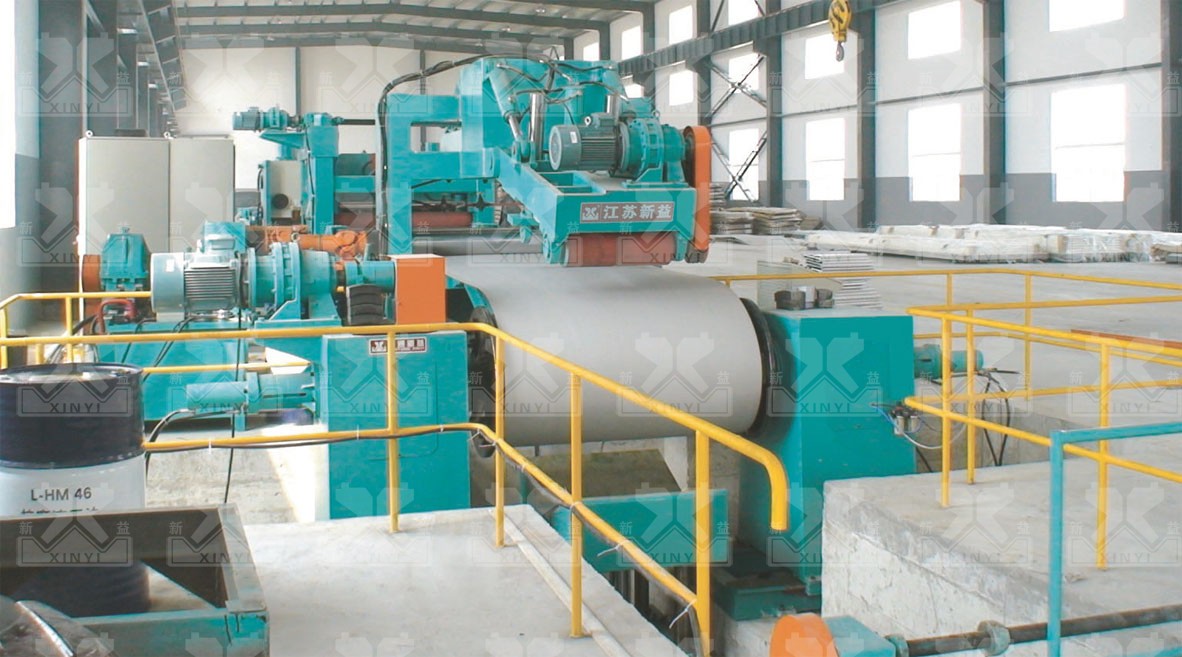

由上料小车、开卷机、引头装置、牵引夹送及粗校、过渡台、对中装置、纵剪主机、校平主机、剪板机、落料 出料装置等组成,可另外选配废边卷取装置。
也可根据客户要求,另行配备收卷装置,具有纵剪后不定长横剪时进行卷取的功能。
Features:
Add slitting function on the basic of cut-to-length line for thin plate, fixed length crossing cut after slitting; lift the slit blade shaft if no need slitting, it can use as a cross-cutting line. It is suitable for industries such as car, electronic, jar-making etc.
It consists of feeding car, uncoiler, traction device, strip feeding and rough-leveling, transition table, centering device, slitting machine, level machine, shearing machine, discharging and unloading device etc.
Can according to customer1 s request to choose optional recoil, device.
主要技术参数 Specifications
项目 Name 单位 Unit 可选择范围 Optional range
加工板厚 Plate thickness mm 1.5-6.0  3.0-10  4.0-1.6  6.0-20
标准板宽 Standard width mm 1600  1800  2000  2500
开卷机承重 Uncoiled weight T 25-35
纵剪宽度精度 Slitting width precision mm ±0.1-0.25
最多分条数 Max, slitting number pcs 5-20
定尺精度 Cutting length precision mm/2m ±3-5
定长范围 Cutting length range mm 1000-14000
机组最高线速度 Highest line speed m/min 10-30
机组总功率 Total power Kw 150-500
本表所列参数,不作为产品检验依据,仅供产品选型参考。如出现与产品实际数据有不一致处,应遵照说明书或双方的技术协议约定。
The data in file not as inspection evidence, just reference for model chosen. If any difference with actual data, please refer to manual or technical agreement by both parties.
