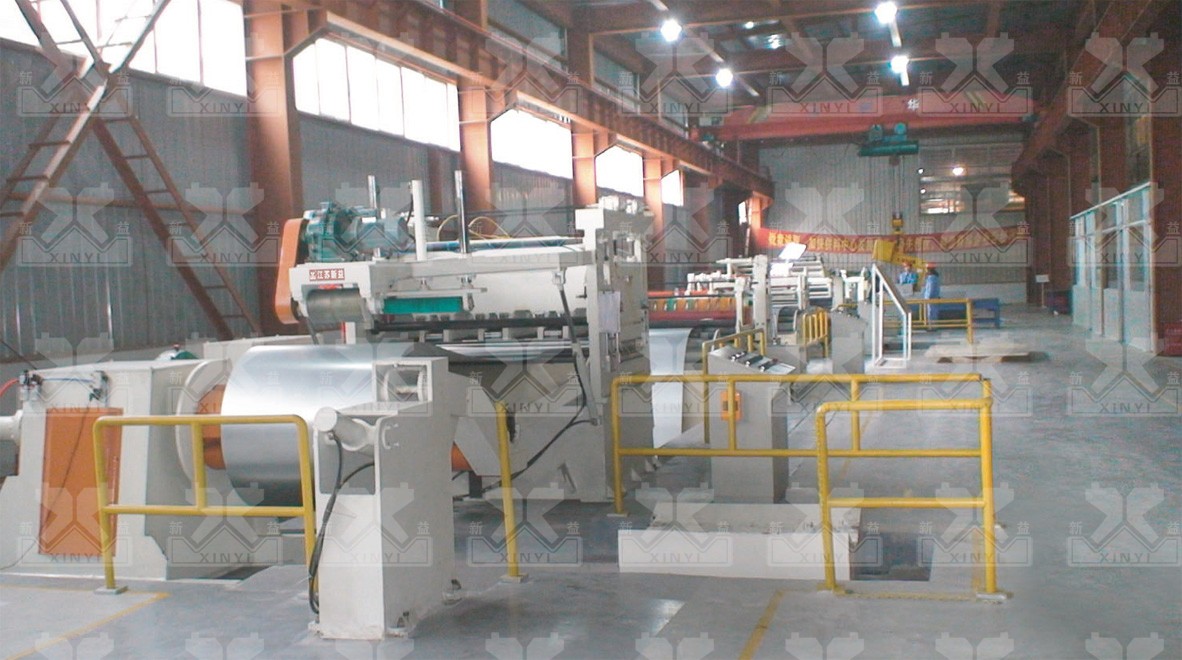

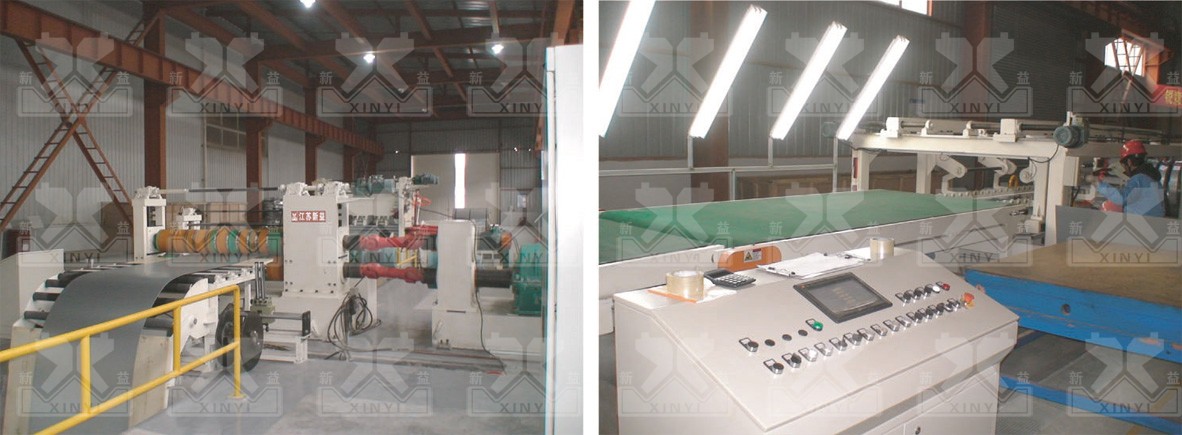

T44QK系列开卷纵横剪收卷复合线
T44QK Series Uncoil Slit-Cutting Recoil Combined line
性能特点
本设备用于不锈钢、镀锌板、冷轧板卷料的开卷、校平、剪切、收卷作业,自动程度高、生产效率高。全线电 气控制整机联动,加工精度高。整条生产线机械、电气、液压、气动自动化控制一体化,从开卷、校平、纵剪、 横剪、收卷实行同步控制。整套设备考虑到所加工材料的表面要求较高,设计的各种过桥托辊输送装置,表面采 用特殊工艺,不会造成板料压痕、碰伤、划伤、折边、咬边等现象。
Features:
This line is for uncoiling, leveling, slitting, cut-to-length, recoil of stainless steel, galvanized sheet and cold coils. High automatic working and efficiency, the whole line linked-control by electric, high processing precision. And whole line integrated of mechanical, electrical, hydraulic, pneumatic control, synchronized uncoiling, leveling, slitting, cross-cutting and recoiling. By consider of high surface request, the designed bridges* support roller transport device, all surface adopt special art, will not occur indentation, bumps, scratches, folding and undercut.
主要技术参数 Specifications
项目 Name 单位 Unit 可选择范围 Optional range
加工板厚 Plate thickness mm 0.3-1.5  0.4-2.0  0.5-3.0
标准板宽 Standard width mm 1300  1600
开卷机承重 Uncoiled weight T 6-15
纵剪宽度精度 Slitting width precision mm ±0.05-0.1
最多分条数 Max, slitting number pcs 5-20
收卷内径 Recoil inner dia. mm 508、610
收卷重量 Recoil weight T 6-15
定尺精度 Cutting length precision mm/2m ±0.5-1.5
定长范围 Cutting length range mm 500-4000
机组最高线速度 Highest line speed m/min 20-60
机组总功率 Total power Kw 100-300
本表所列参数,不作为产品检验依据,仅供产品选型参考。如出现与产品实际数据有不一致处,应遵照说明书或双方的技术协议约定。
The data in file not as inspection evidence, just reference for model chosen. If any difference with actual data, please refer to manual or technical agreement by both parties.
