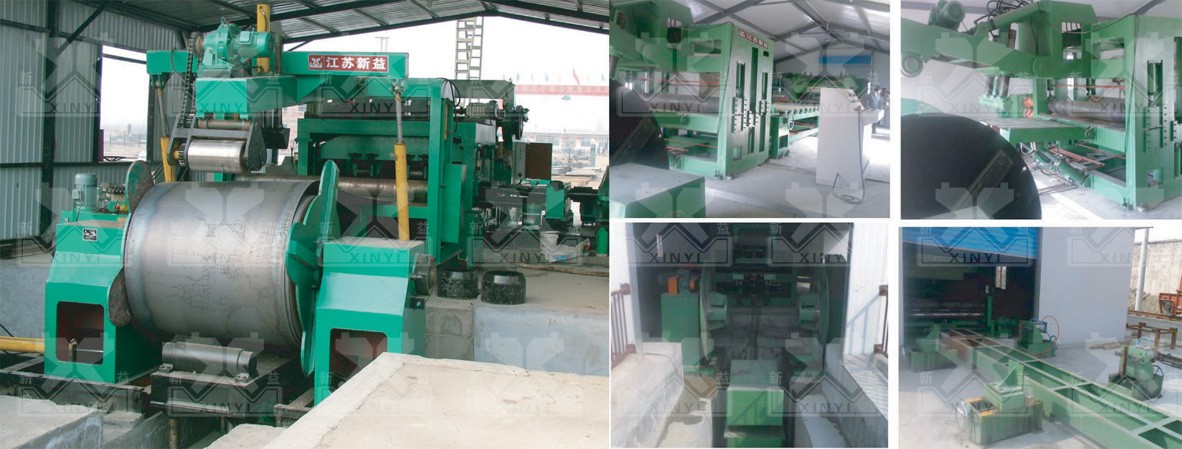

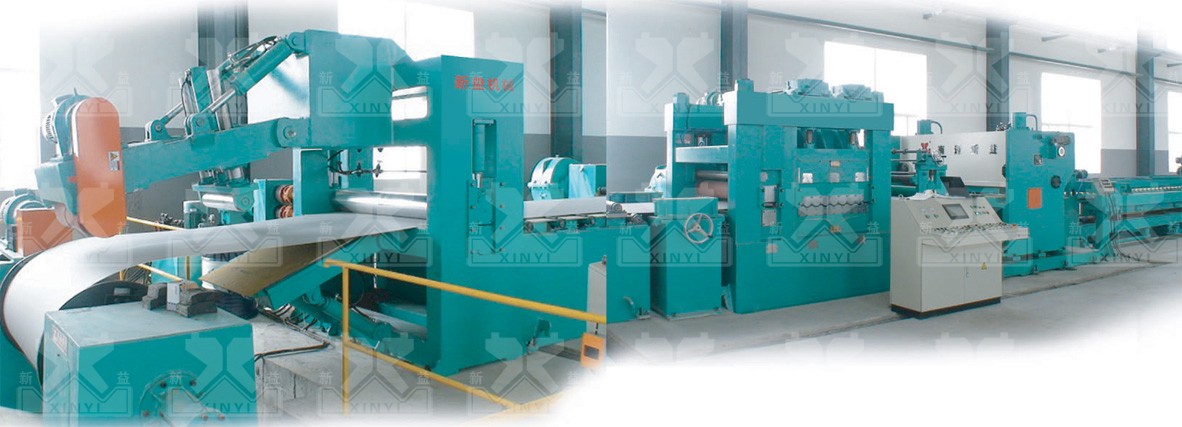

T44K系列开卷校平剪切线
T44K Series Cut-To-Length line
性能特点
该生产线为中厚板开卷校平生产线的升级机型。为了适应钢厂不断推出的厚度更大、板幅更宽的钢卷开平需要, 本公司特别设计、制造出该系列产品。由上料小车、开卷机、引头装置、夹送及粗校、过渡台、对中装置、主校 平机、测长装置、尾料夹送、剪板机、输送出料、落料整料装置、电控系统与液压气动系统等组成。
Features:
This line is a upgrade type machine of cut-to-length line for middle/thick plate. In order to suitable for uncoiling of more thick and width of coils, we design and manufacture this series production. It consists of feeding car,uncoiler,traction device, pinch and rough-level, transition table, centering device, machine level machine, length device, endplate feeding,shearing machine, transport unloading, discharge device, electrical control system and hydraulic pneumatic system etc.
主要技术参数 Specifications
项目 Name 单位 Unit 可选择范围 Optional range
加工板厚 Plate thickness mm 1.5-6.0  2.0-8.0  3.0-1.2  4.0-1.6  6.0-20  8.0-25
标准板宽 Standard width mm 1300  1600  1800  2000  2200  2500
开卷机承重 Uncoiled weight T 25-35
校平精度 Leveling precision mm/m2 2.0
定尺精度 Cut-to-length precision mm/2m ±3.0
机组最高线速度 Highest line speed m/min 10-25
机组总功率 Total power Kw 150-400
本表所列参数,不作为产品检验依据,仅供产品选型参考。如出现与产品实际数据有不一致处,应遵照说明书或双方的技术协议约定。
The data in file not as inspection evidence, just reference for model chosen. If any difference with actual data, please refer to manual or technical agreement by both parties.
